SV20H

Why should touring artists have all the fun? With the SV20H you can harness the formidable tone of the 1959SLP at home or in the studio. Switch between 20W and 5W at the flick of a switch and let the defining sound of the plexi live on.

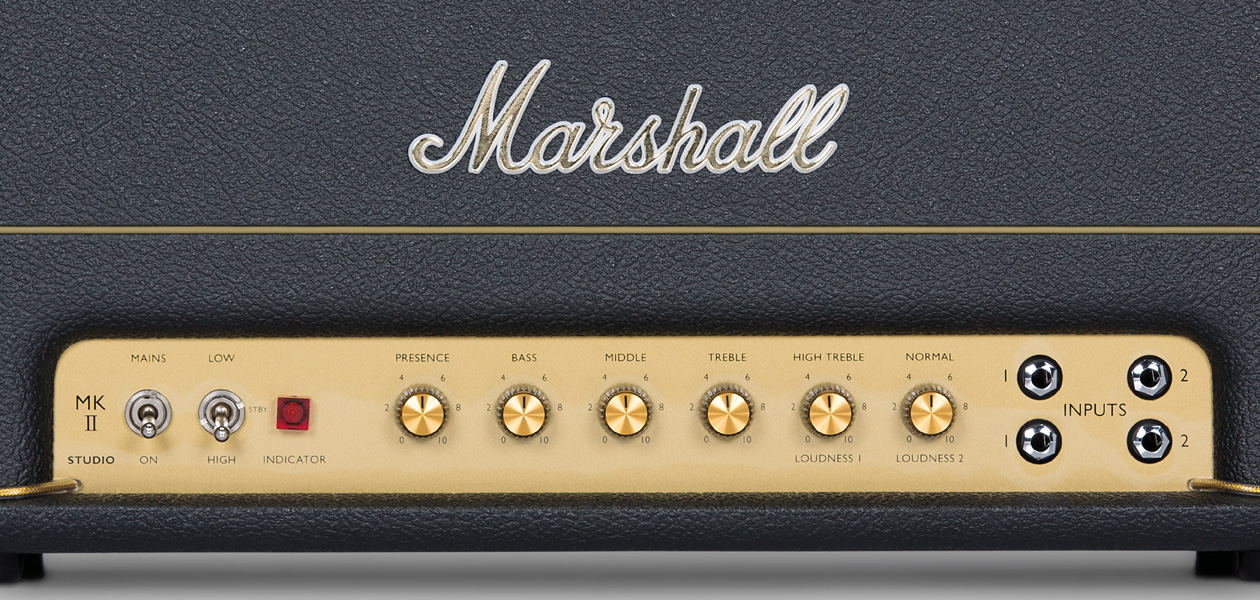

In true plexi style, the SV20H features four separate guitar inputs, two for each channel. This gives you the ability to choose between the brightness of the high treble channel, the roundness of the normal channel, or blend between the two with a patch cable. Add in the EQ and presence controls and you can take your sound from warm saturated blues to aggressive biting leads. The power reduction featurealso makes it versatile enough for studio recording and home practice.

Hear the SV20H

Powered by Celestion Impulse Responses

Clean 1
Clean 1 Presence 6, Bass 6, Mid 4, Treble 4, High Treble 1, Normal 2
Clean 2
Clean 2 Presence 6, Bass 4, Mid 6, Treble 6, High Treble 3, Normal 4
Crunch 1
Crunch 1 Presence 5, Bass 9, Mid 8, Treble 2, High Treble 2, Normal 6
Crunch 2
Crunch 2 Presence 5, Bass 8, Mid 8, Treble 3, High Treble 6, Normal 8
Crunch 3
Crunch 3 Presence 8, Bass 7, Mid 8, Treble 5, High Treble 10, Normal 10

Technical Specification

General
Model
SV20H
Range
Studio
Electronics
Output wattage
20W (with power reduction option to 5W)
Outputs
5 x 1/4” jack sockets, selectable 16Ω / 8Ω / 4Ω load
Inputs
4 (2 x high, 2 x low) "Lead and Bass"

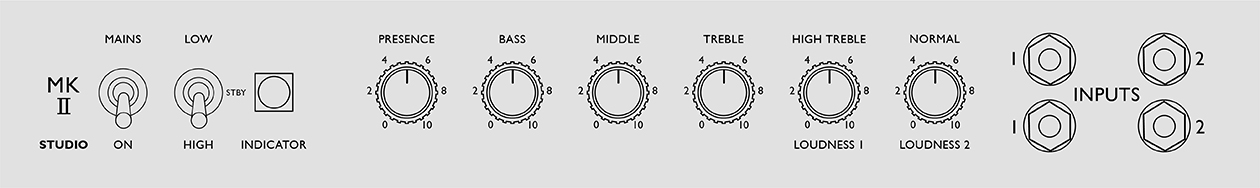

Controls
Low/High power mode selection switch, presence, bass, middle, treble, high treble/loudness I, normal/loudness II
Effects
None
Effects loop
Yes, series, send/return
Valves
Preamp valves
2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves
2 x EL34
Accessories
Cable
Detachable power cable included, speaker cable included
Dimensions (including feet and handle)
Weight
9.25kg / 20.4 lbs
Width
500mm / 19.7"
Height
240mm / 9.4"
Depth
230mm / 9.1"
